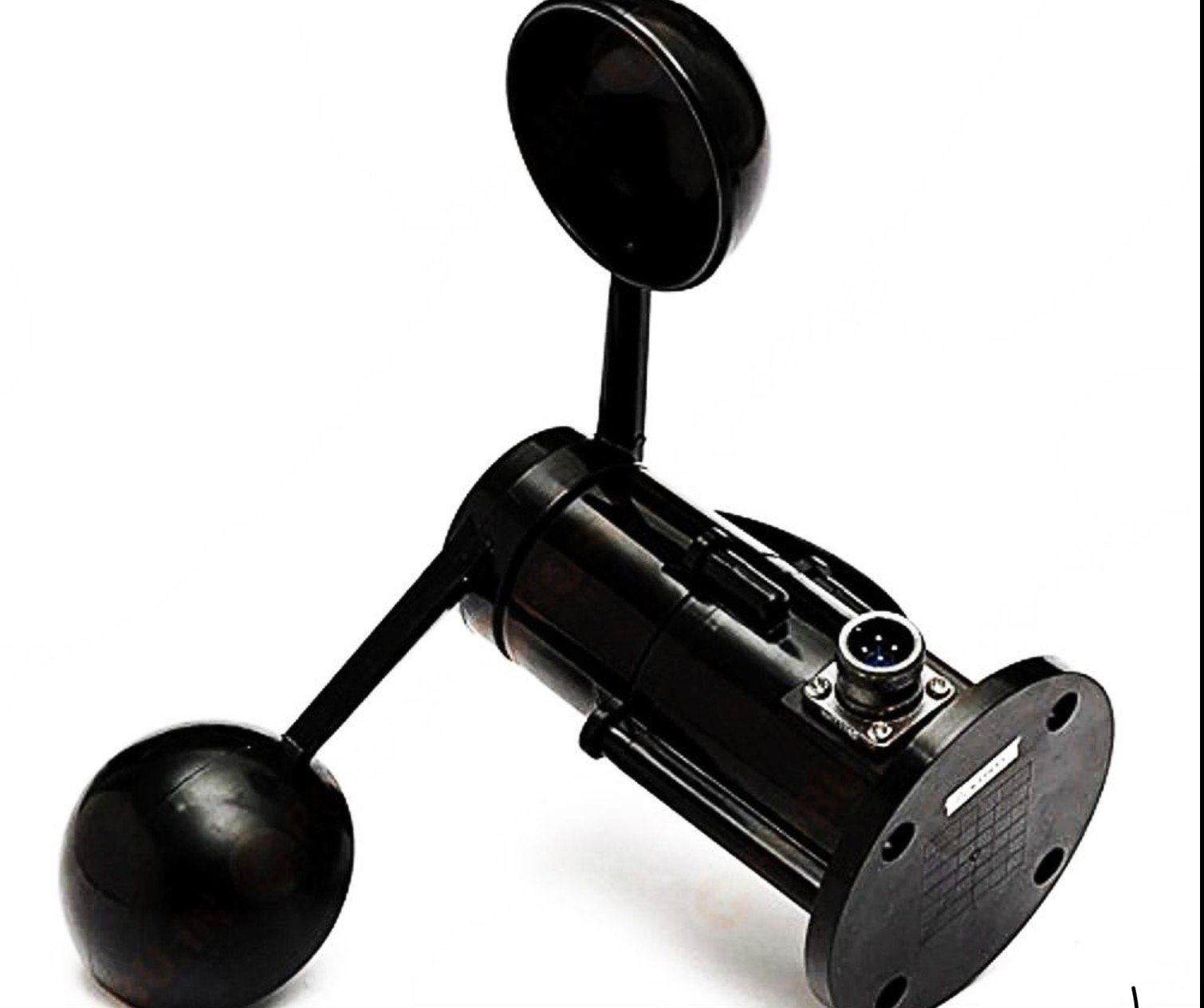

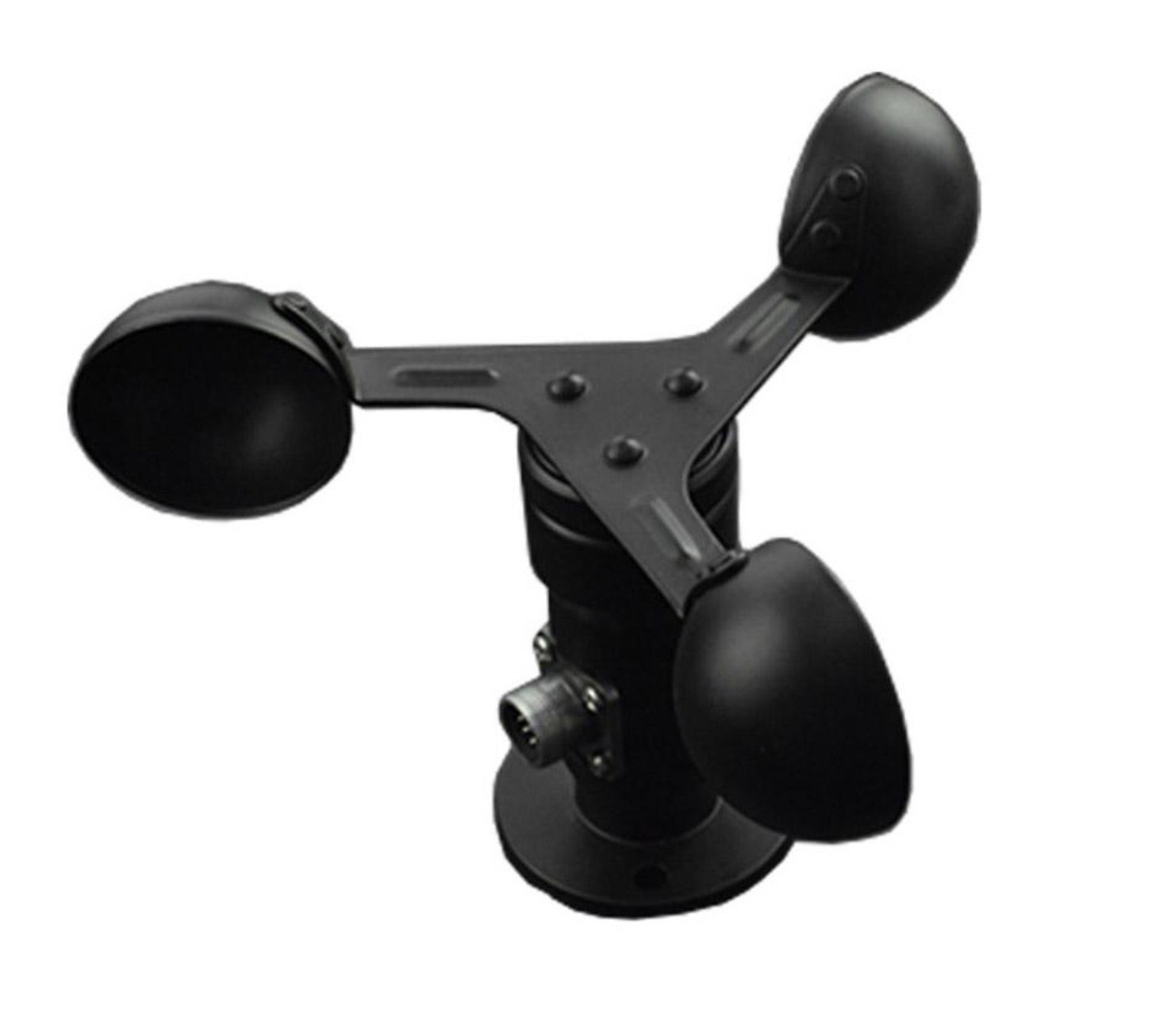

Wind Speed JXCT Sensor RS485 5V Anemometer Kit
₹5,499.00
The JXCT three-cup wind speed sensor is a high-precision anemometer with RS485 output and DC 5V power supply. It features low power consumption (≤0.3W) and a starting wind speed of 0.4–0.8 m/s. The aluminum alloy housing and wind cups are manufactured using precision casting technology, providing high strength, corrosion resistance, waterproof performance, and long-term durability in harsh outdoor environments.
The sensor uses industrial-grade electronic components and a military-grade PCB to ensure stable operation, strong electromagnetic interference resistance, and reliable performance in temperatures from –20 °C to +50 °C. It is widely used in cranes, ports, power plants, meteorological monitoring, agriculture, greenhouses, HVAC systems, and environmental monitoring applications.
Wind Speed JXCT RS485 5V Anemometer Kit
Specifications
-
Output Signal: RS485
-
Supply Voltage: DC 5V
-
Power Consumption: ≤ 0.3 W
-
Starting Wind Speed: 0.4–0.8 m/s
-
Operating Temperature: –20 °C to +50 °C
-
Operating Humidity: 35%–85% RH (non-condensing)
Product Description
The JXCT three-cup wind speed sensor is a high-precision anemometer designed for accurate and reliable wind speed measurement. The device consists of a robust outer shell, precision wind cups, and an integrated circuit module.
The sensor housing and wind cups are manufactured from aluminum alloy using special precision mold casting technology, resulting in minimal dimensional tolerance and a high-quality surface finish. This construction provides excellent strength, weather resistance, corrosion protection, and full waterproof performance.
Internally, the sensor integrates photovoltaic modules, an industrial-grade microprocessor, and current-generation circuitry. The PCB is made from military-grade material, ensuring stable electrical performance and long-term reliability. All electronic components are industrial-grade chips, offering strong resistance to electromagnetic interference and stable operation in harsh environments.
The sensor is equipped with a military-grade connector, providing superior corrosion resistance and protection against environmental erosion. This design ensures long service life and consistent accuracy when installed according to recommended specifications.
Applications
This anemometer is widely used in:
-
Engineering machinery (tower cranes, crawler cranes, gantry cranes, etc.)
-
Railways, ports, and docks
-
Power plants and energy monitoring systems
-
Meteorological stations
-
Cableways
-
Environmental monitoring
-
Greenhouses and agricultural facilities
-
Livestock breeding
-
HVAC systems
-
Clean rooms and health-related environments
Wiring Connection
-
Red: +5V
-
Black: GND
-
Yellow: RS485 A
-
Blue: RS485 B
Key Features
-
High mechanical strength
-
Excellent corrosion resistance
-
Waterproof design
-
High measurement precision
